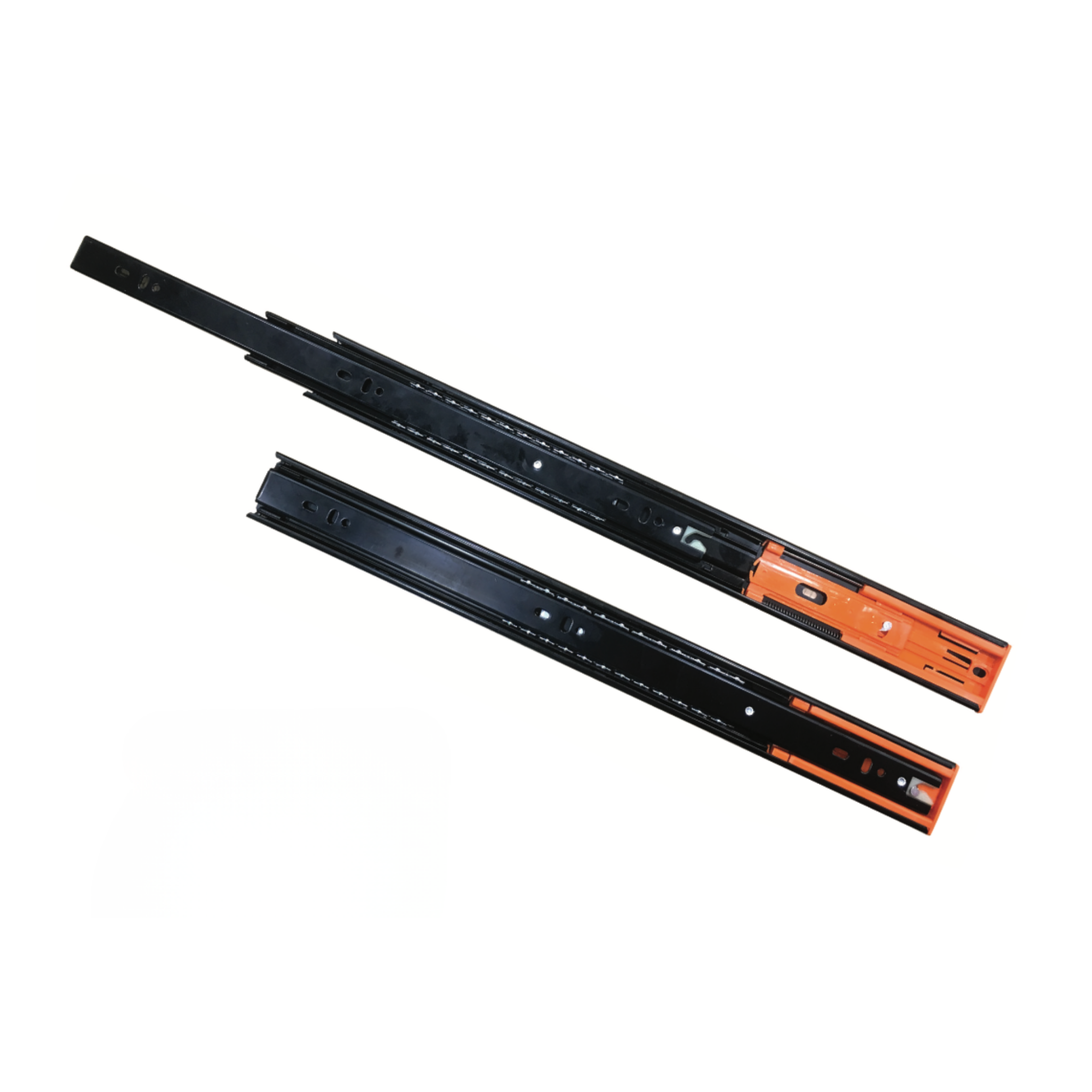

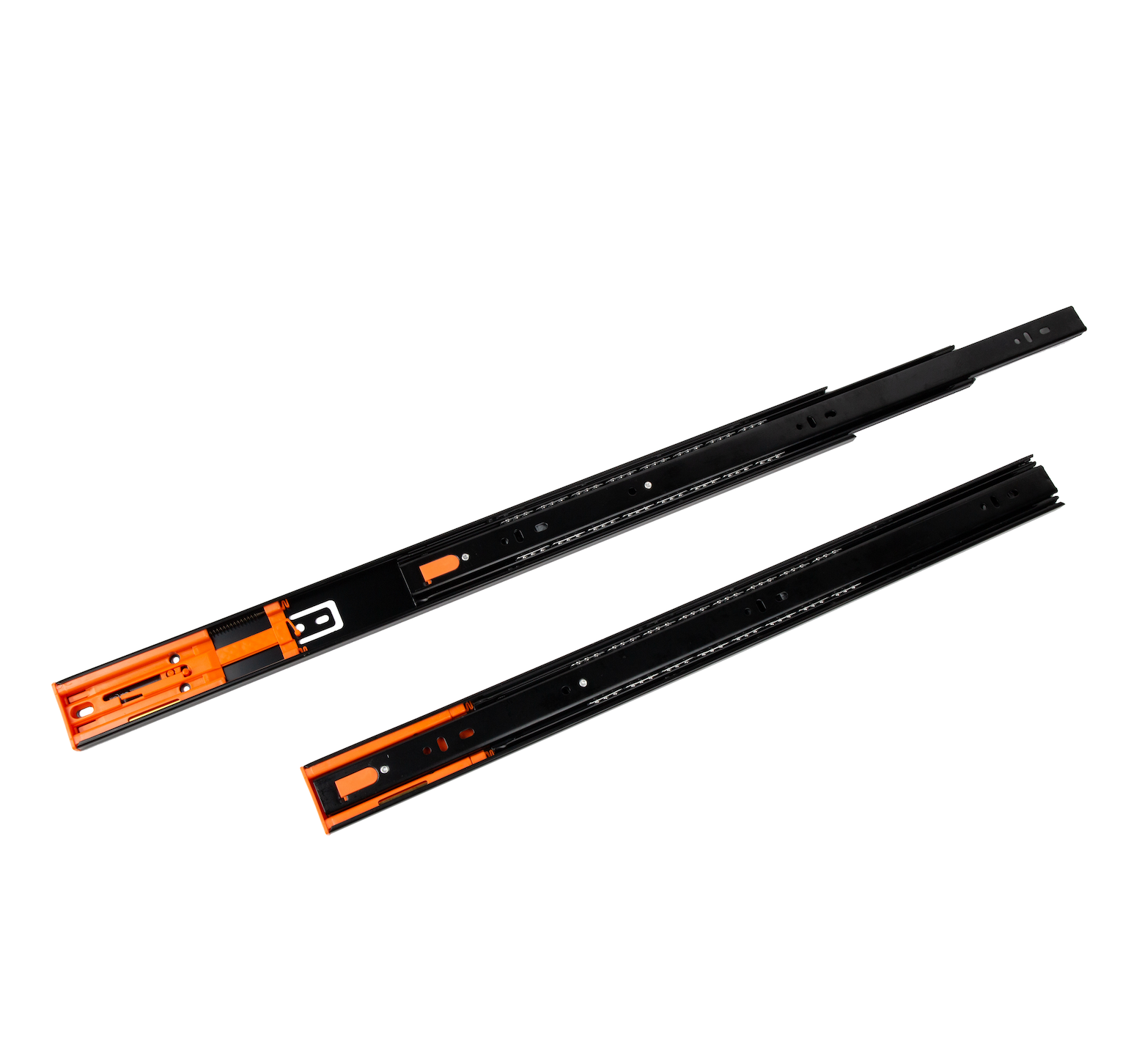

SOFT-CLOSING FULL EXTENSION SLIDE NJ4501

DS-NJ4501-10BLK

SOFT-CLOSING FULL EXTENSION SLIDE NJ4501

Product Description

Engineered for precision side-mount installation, heavy-duty support, and quiet operation, the JASMINE NJ4501 Drawer Slide Soft-Closing Full Extension provides a professional-grade drawer runner solution built for modern architectural cabinetry. Featuring a durable black finish, an integrated soft-closing mechanism, full-extension travel, and a robust 40kg load capacity, these slides ensure effortless and controlled closure for high-end residential and commercial furniture.

Key Features

Soft-Closing Mechanism: Equipped with dampening buffers to ensure smooth, quiet, and automatic closing action.
Full Extension Design: Allows drawers to pull out completely, providing maximum visibility and access to contents.
Heavy-Duty Build: Designed with a 40kg load capacity and a thicker gauge structure for enhanced durability.

Specifications

Product Name: JASMINE NJ4501 Drawer Slide Soft-Closing Full Extension
Brand / Line: JASMINE (Seawalk Hardware)
Model Code / SKU Prefix: DS-NJ4501-
Available Sizes & Dimensions:
- 12BLK (Size: 12" | Slide Length: 300 mm | Travel Length: 245 mm | Dimension: $64(A) x 192(F)$
- 14BLK (Size: 14" | Slide Length: 350 mm | Travel Length: 330 mm | Dimension: $64(A) x 160(B) x 96(E) x 256(F)$
- 16BLK (Size: 16" | Slide Length: 400 mm | Travel Length: 400 mm | Dimension: $64(A) x 224(B) x 128(E) x 288(F)$
- 18BLK (Size: 18" | Slide Length: 450 mm | Travel Length: 450 mm | Dimension: $64(A) x 224(B) x 160(E) x 352(F)$
- 20BLK (Size: 20" | Slide Length: 500 mm | Travel Length: 500 mm | Dimension: $64(A) x 224(B) x 228(C) x 192(E) x 384(F)$
- 22BLK (Size: 22" | Slide Length: 550 mm | Travel Length: 550 mm | Dimension: $64(A) x 224(B) x 352(C) x 224(E) x 448(F)$
- 24BLK (Size: 24" | Slide Length: 600 mm | Travel Length: 600 mm | Dimension: $64(A) x 224(B) x 352(C) x 416(E) x 224(E) X 480(F)$
Mounting Type: Side Mount
Thickness: $1.2 x 1.2 x 1.5mm$
Height: 44.5 mm
Load Capacity: 40kg
Finishing: BLK (Black)
Packing: 15 set/ctn
Application: Kitchen drawers, vanity cabinets, architectural joinery, and custom furniture
UOM: Set

Brand: JASMINE

Type: FURNITURE
