CROSS HINGE

HG-CH1/2

CROSS HINGE

Product Description

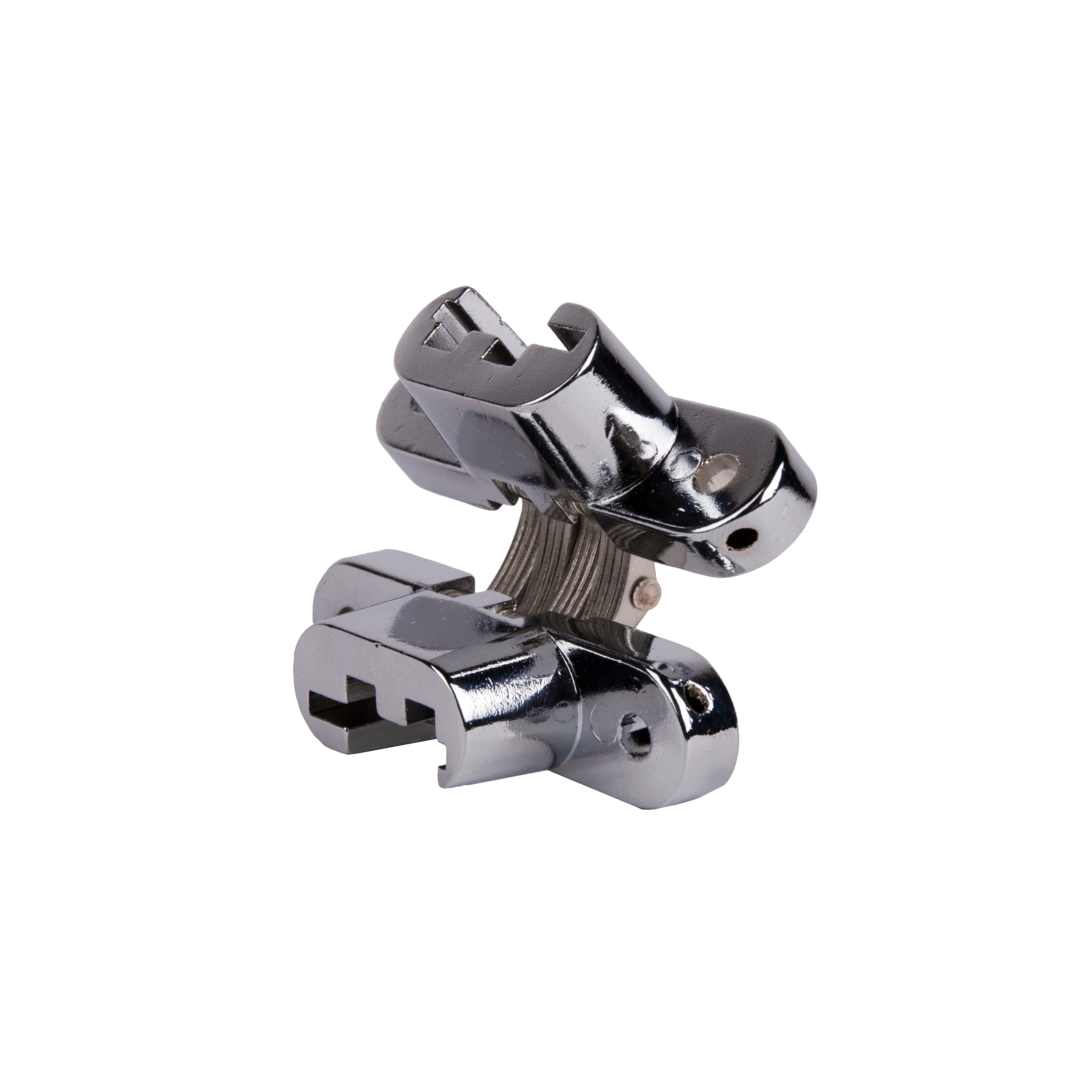

Engineered for seamless, concealed installations, the Cross Hinge provides a clean, minimalist aesthetic when doors are closed while allowing a full $180^\circ$ range of motion. Crafted from durable zinc with a refined chrome-type finish, this hinge is completely hidden within the door and frame mortise, making it ideal for high-end cabinetry and flush architectural doors.

Key Features

Completely Concealed Design: Housed entirely within the door and frame for a sleek, hardware-free look when closed.
Durable Zinc Construction: Provides high structural integrity and long-lasting wear resistance.
Smooth Pivot Action: Designed for precision alignment and reliable multi-pivot movement.

Specifications & Models

Product Name: Cross Hinge
Material: Zinc
Finish: CH
Thickness: $2.4mm$
Available Sizes & SKUs (Dimensions A x B x C x D x E x F x G):
- 1/2" (SKU: HG-CH 1/2"): $12 x 45 x 21 x 32 x 17.5 x 8.8 x 17.5mm$
- 5/8" (SKU: HG-CH 5/8"): $15.6 x 61.7 x 26 x 46 x 21.3 x 14.5 x 30mm$
- 3/4" (SKU: HG-CH 3/4"): $19.2 x 94 x 34 x 77 x 26.5 x 19 x 51.5mm$
- 1" (SKU: HG-CH 1"): $27 x 118 x 35 x 89 x 40 x 24 x 64mm$
UOM: Piece / Pair

Brand: SH

Type: ARCHITECTURE

SET OF 2PCS

1/2"

5/8"

3/4"

Product Description

Key Features

Completely Concealed Design: Housed entirely within the door and frame for a sleek, hardware-free look when closed.
Durable Zinc Construction: Provides high structural integrity and long-lasting wear resistance.
Smooth Pivot Action: Designed for precision alignment and reliable multi-pivot movement.

Specifications & Models

Product Name: Cross Hinge
Material: Zinc
Finish: CH
Thickness: $2.4mm$
Available Sizes & SKUs (Dimensions A x B x C x D x E x F x G):
- 1/2" (SKU: HG-CH 1/2"): $12 x 45 x 21 x 32 x 17.5 x 8.8 x 17.5mm$
- 5/8" (SKU: HG-CH 5/8"): $15.6 x 61.7 x 26 x 46 x 21.3 x 14.5 x 30mm$
- 3/4" (SKU: HG-CH 3/4"): $19.2 x 94 x 34 x 77 x 26.5 x 19 x 51.5mm$
- 1" (SKU: HG-CH 1"): $27 x 118 x 35 x 89 x 40 x 24 x 64mm$
UOM: Piece / Pair
